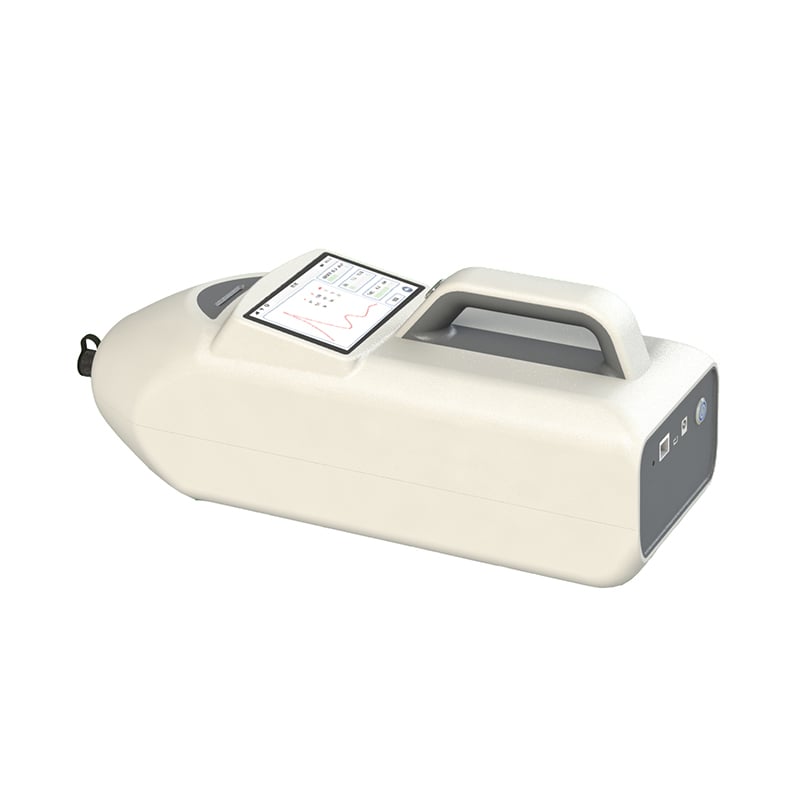

LSJ is proud to introduce the SEED-PM, a state-of-the-art handheld chemical detector based on Ion Mobility Spectrometry (IMS) technology. This cutting-edge device rapidly and accurately identifies trace amounts of explosives, narcotics, and chemical warfare agents, setting a new benchmark in the international safety detection equipment market.
There are three Optional Detector Modules for you to Enhance the functionality of SEED-PM:
PID Detector: For volatile organic compounds (VOCs) detection.
LEL Detector: Monitors combustible gases and vapors.
CsI (Cesium Iodide) Detector: Optimized for gamma radiation detection, enhancing the device’s utility in nuclear safety applications.
Discover the full capabilities of the SEED-PM and how it can serve your safety needs. Contact LSJ today for more information and to schedule a live demonstration.
Is there a problem?
Please contact us to serve you!
SEED-PM Handheld Chemical Detector Specifications
|
Detection Principle |
Ion Mobility Spectrometry (IMS) Technology |
|
Detector type |
Ion Mobility Spectrometry; CsI Cesium Iodide Detector (Optional); Nuclear Radiation Detector (Optional) |
|
Sample Acquisition |
Surface wipe or optional vacuum collection |
|
Classes of Substances Detected |
Explosives: TNT,PETN ,NG, RDX, BP, DNT、Tetrayl, HMX,AN, C4, Semtex,TATP, HMTD, EGDN and other explosives |
|
Narcotics:Cocaine,Heroin,MET,MDMA,Ketamine,MOP,LSD,PCP,Amphetamine ,Methamphetamine and other drugs |
|
|
CWA：GA,GB,GD,VX ,VS,HD,L,HN3,AC,CG，etc. TIC ：NH3,Cl2,H2S,NO,NO2,HCHO，etc. VOCs：CH4，C2H4，C6H6，CHCl3，CH3OH，C3H6O，C4H10O，C4H8O2，HCN，etc. Nuclear Radiation：Cesium Iodide |
|
|
Ensitivity |
TNT200pg, Cocaine200pg，0.1mg/m³（GB）， |
|
Warmup Time |
Allow 20 minutes for system to stabilize |
|
Analyses Time |
Default 8 seconds |
|
Alarm |
Audio and visual |
|
Display |
4.3” TFT-LCDmonitor with touch screen |
|
Data Memory |
300000 records |
|
Data Transfer Capability |

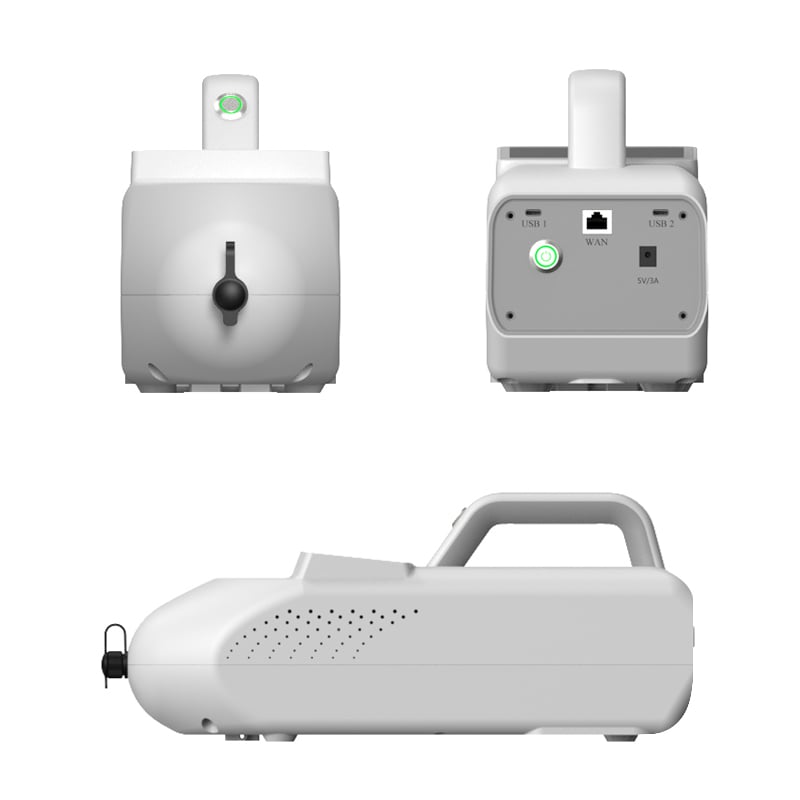

Two USB ports; Ethernet port |
|
Power |
AC Input: 110-220 VAC, DC:50/60Hz 24V Battery Backup: Up to 5h of standby time daily |
|
Operating Temperature |
ambient temperature range from -10℃ to 50℃. supporting range of relative humidity of air from 5% to 95%. |
|
Weight: |
≤3kg |
The SEED-PM by LSJ is an all-in-one solution, capable of detecting explosives, narcotics, chemical agents, industrial toxic gases, and nuclear radiation. Designed for versatility and ease of use, this handheld chemical detector is ideal for security, law enforcement, and industrial safety applications.
Multi-Detection Capability: Detects a wide range of threats including explosives, drugs, chemical agents, toxic gases, and nuclear radiation, all with a single device.
User-Friendly Operation: Features a one-key operation system with guided maintenance, eliminating the need for manual intervention.
Flexible Sampling Methods: Supports both suction and wipe sampling, with customizable analysis times to suit user needs.

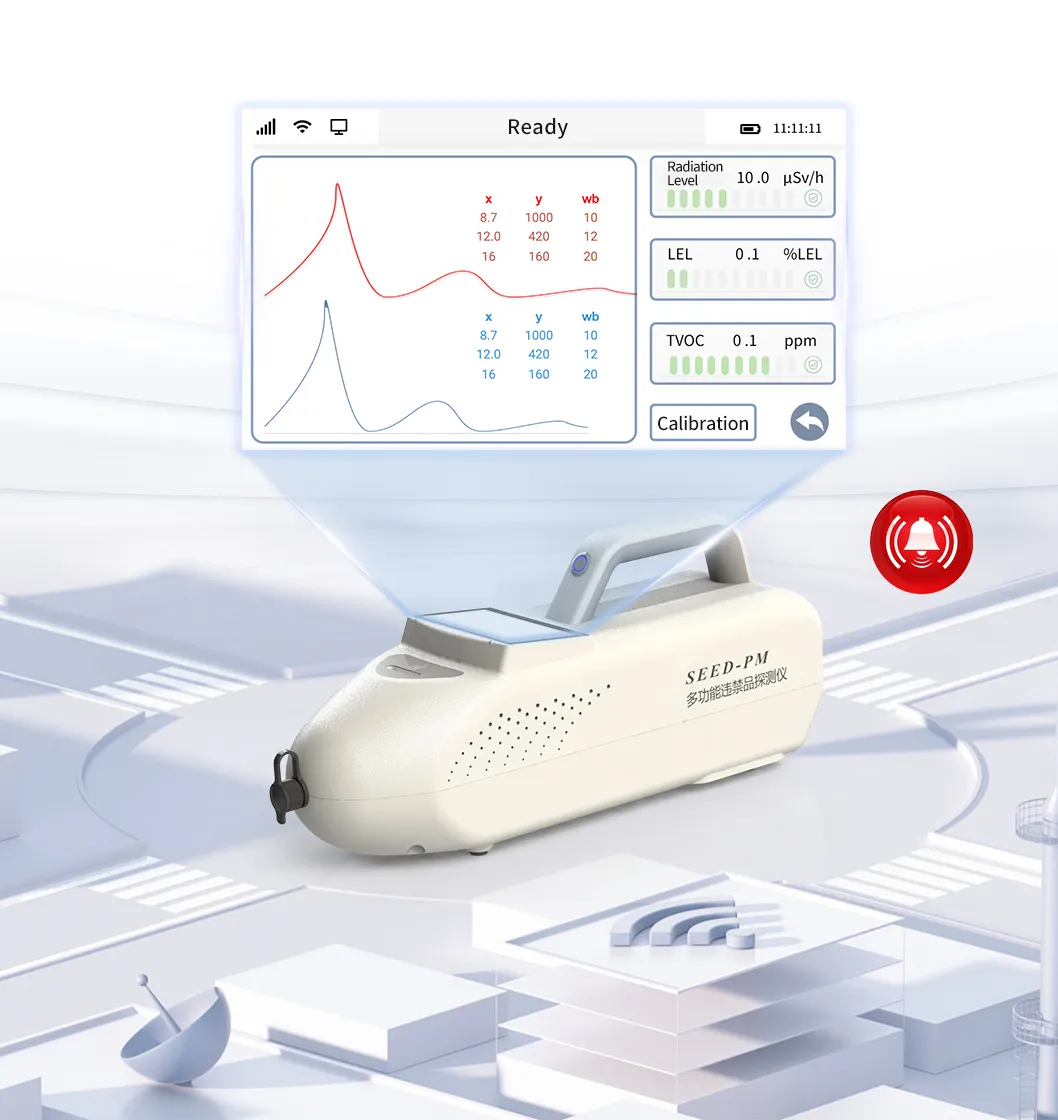

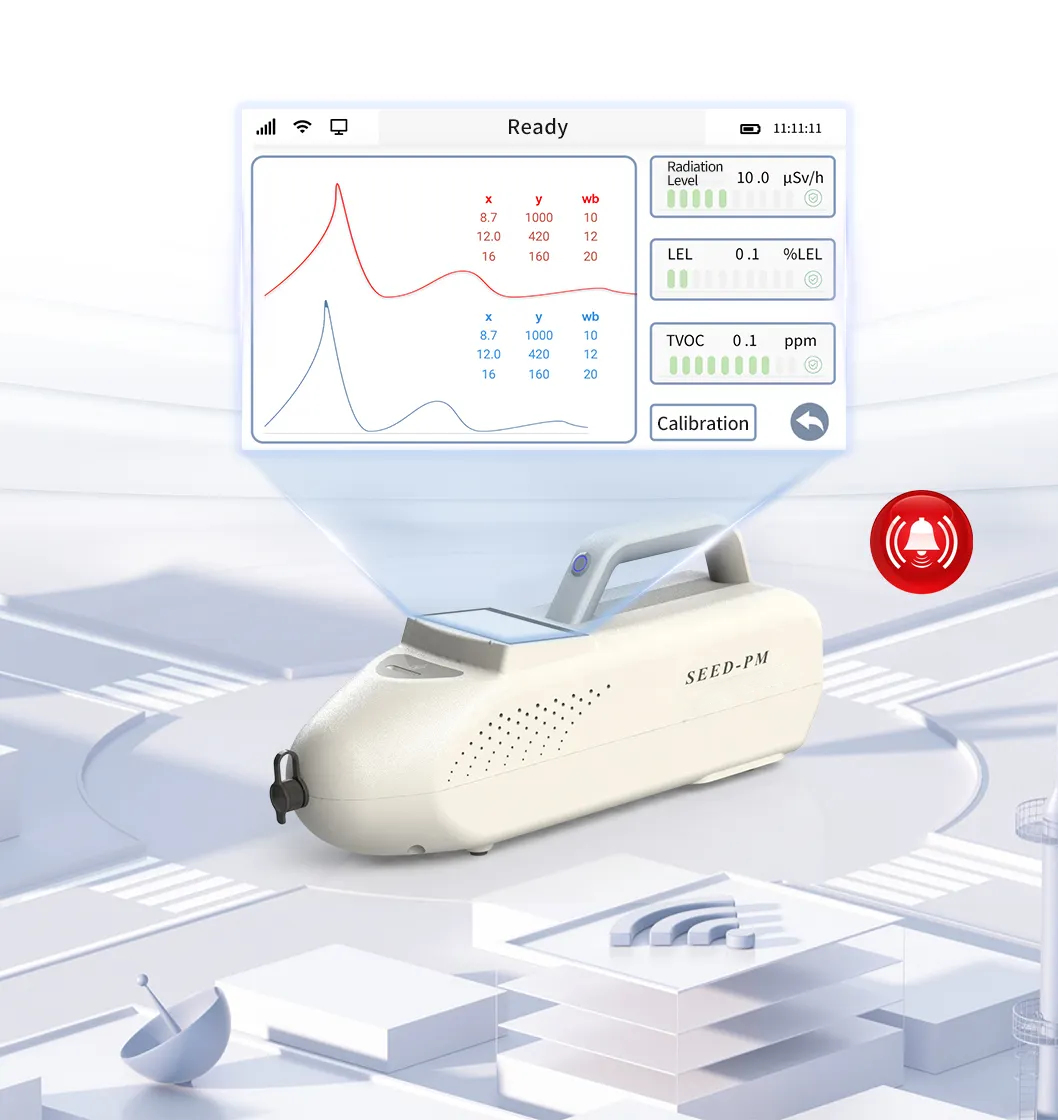

Real-Time Analysis and Display: Quickly analyzes and identifies various substances, displaying results instantly on the device.
Advanced Alarm System: Equipped with sound and light alarms, with adjustable thresholds to meet different operational scenarios.
Intelligent Diagnostics: Incorporates an intelligent algorithm for real-time diagnostics and rapid alerts, enhancing responsiveness in critical situations.
Self-Inspection and Calibration: Comes with built-in self-inspection and calibration functions, alongside real-time fault diagnosis, ensuring continuous reliability.
Energy Efficient: Designed for low power consumption with a long standby time, making it suitable for extended operational periods.
Remote Data Integration: Supports remote data push technology, enabling the transmission of detection results to a designated server or command center for enhanced coordination and response.

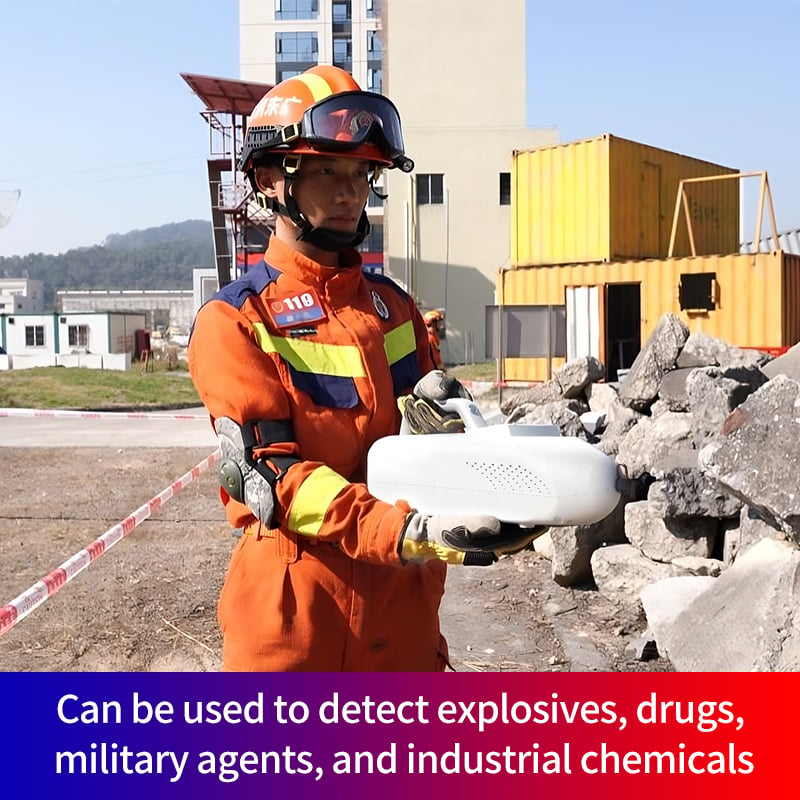

The SEED-PM handheld chemical detector, developed by LSJ, is an essential tool for a range of critical applications including firefighting, search and rescue operations, and hazardous material detection. This versatile device is engineered to enhance safety and efficiency in various emergency scenarios.
Firefighting Search and Rescue: The SEED-PM is designed to assist firefighters and rescue teams in navigating through smoke and debris, making it an invaluable tool for saving lives and mitigating fire damage.
Residual Fire Monitoring: Effective for monitoring smoldering fires and hotspots, ensuring that no residual fire reignites, providing peace of mind in post-fire scenarios.
Detection of Shallow Buried Individuals: In the aftermath of earthquakes or other disasters, the SEED-PM can detect signs of life under ruins, aiding prompt rescue efforts and increasing survival chances.
Forest Fire Monitoring: Capable of detecting and monitoring forest fires, helping to prevent the spread and providing data for effective firefighting strategies.
Fire Source Identification and Investigation: Utilizes advanced detection technologies to locate the origin of fires and investigate causes, crucial for preventing future incidents.
Dangerous Goods Detection: Identifies hazardous substances, supporting safety in environments where dangerous chemicals or explosives are present.
